Timber Ridge Bellevue Signage | Retail & Mixed-Use Development by Plumb Signs

Real World SignageRetail and Mixed Use

Oct 26

Written By Rob Marston

Custom fabrication and installation at 3009 112th Ave NE, Bellevue, WA — architecturally integrated identity, wayfinding, and channel letter signage.

Project Overview

The Timber Ridge Bellevue project demonstrates Plumb Signs’ expertise in delivering architecturally integrated signage for a mixed-use environment. Our team managed the complete program — from site survey and permitting to fabrication and installation — aligning with Bellevue’s design standards while reinforcing the property’s urban identity.

Project:
Timber Ridge Bellevue — Retail & Mixed-Use

Location:
3009 112th Ave NE, Bellevue, WA

Category:
Retail & Mixed-Use Development

Services Provided:
Design coordination, permitting, fabrication, electrical, installation, removal/replacement & site restoration

Materials:
Painted aluminum, acrylic (½″ & ⅜″), stainless hardware, vinyl graphics, raceways

Scope of Work

A cohesive signage package engineered for visibility, durability, and architectural balance across a multi-tenant campus.

Monument & Identity Signage

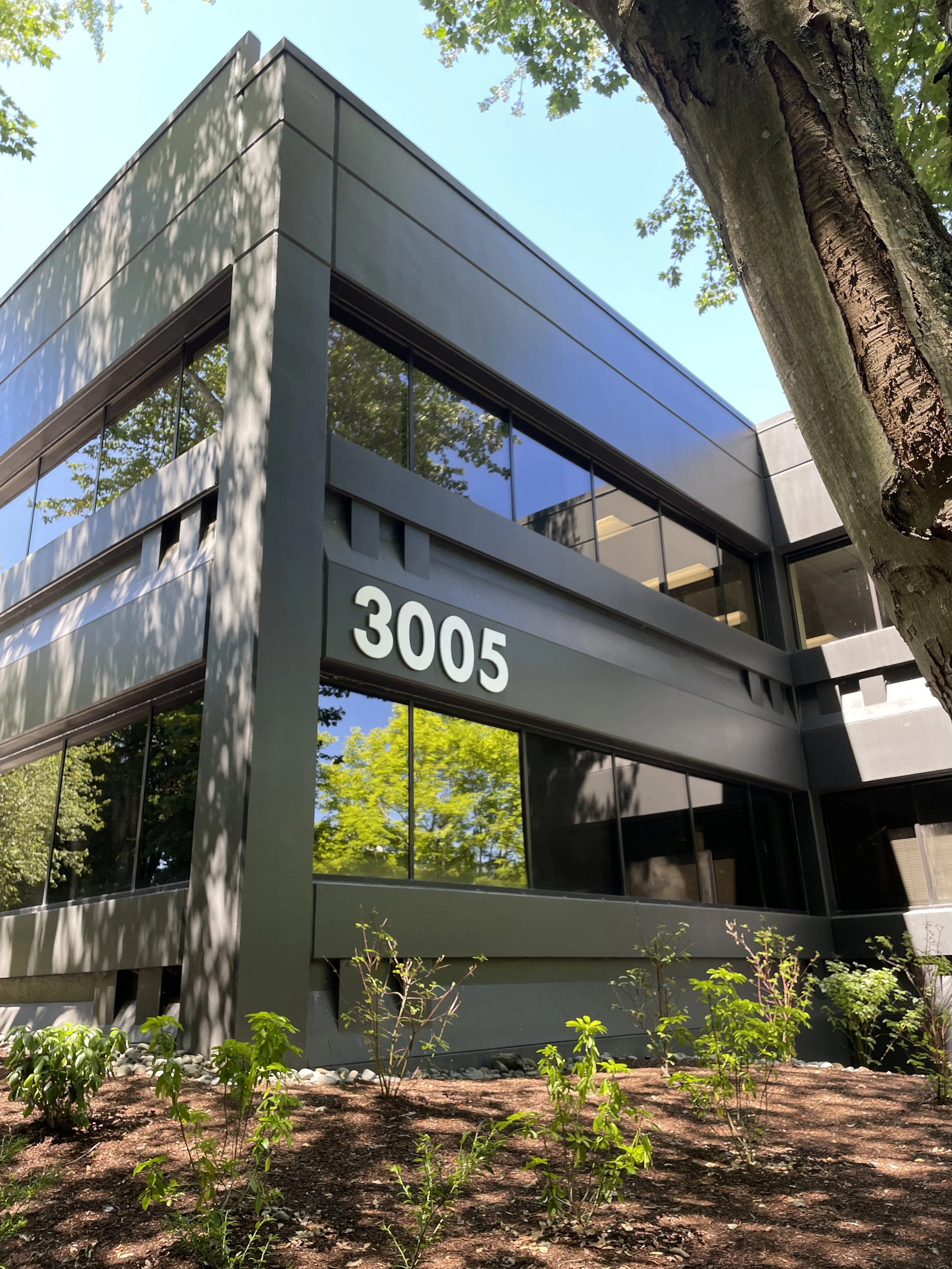

Custom double-face aluminum cabinets with ½″ acrylic graphics and dimensional address numerals; painted finishes matched to site materials.

Illuminated Channel Letters

15″ infinity-faced channel letters with routed aluminum gusset logos; raceway-mounted with clean electrical integration and stainless hardware.

Wayfinding & Directional

Non-illuminated aluminum cabinets with ⅜″ acrylic graphics for clear vehicular and pedestrian guidance across the property.

Removal & Restoration

Decommissioning existing structures, removing below-grade footings and concrete, and restoring surfaces to code.

Install & Electrical

Installations on new/existing concrete bases with mow strips; tie-ins to customer-supplied power with as-built documentation.

Design & Engineering

Our design team collaborated closely with the Timber Ridge development group to align signage architecture with brand expression. Detailed shop drawings, field surveys, and engineering ensured precision fit, code compliance, and long-term durability.

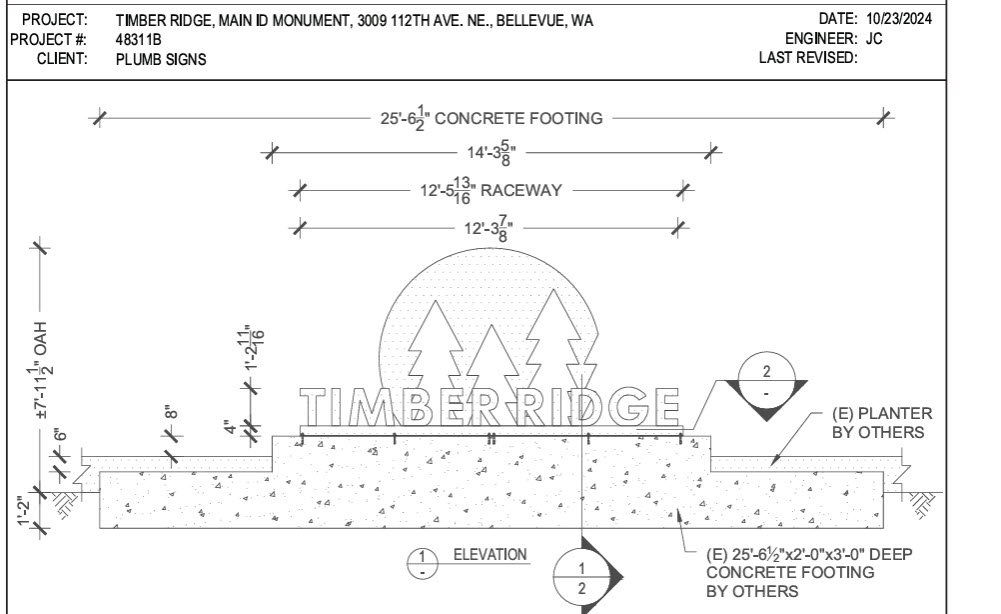

Engineering drawing for Timber Ridge signage — Engineered monument drawing — sizing, materials, and footings.

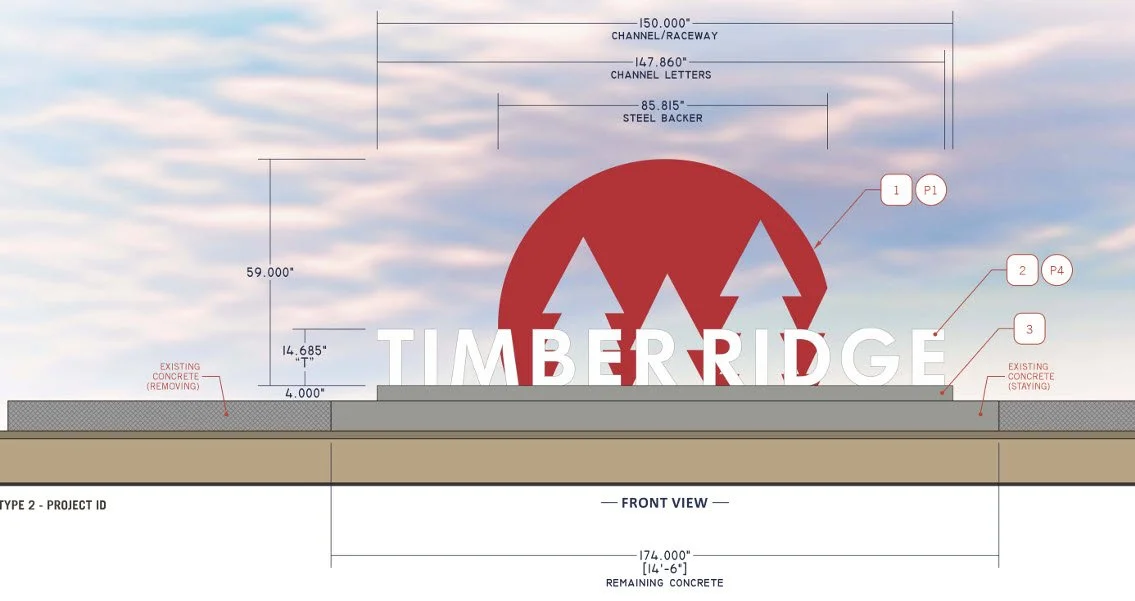

Graphic elevation of Timber Ridge monument sign — Graphic elevation and dimensional callouts for face construction.

Installation & Field Coordination

Installation across the Timber Ridge property required close coordination with general contractors, electricians, and site managers. Plumb Signs oversaw lift work, mounting, and final power connections — ensuring structural integrity and clean architectural presentation across all signage types.

Wayfinding cabinet installation Timber Ridge Bellevue — Wayfinding cabinet — non-illuminated with ½″ acrylic graphics.

Directional signage Timber Ridge Bellevue landscaping — Directional sign — integrated into landscaped pedestrian areas.

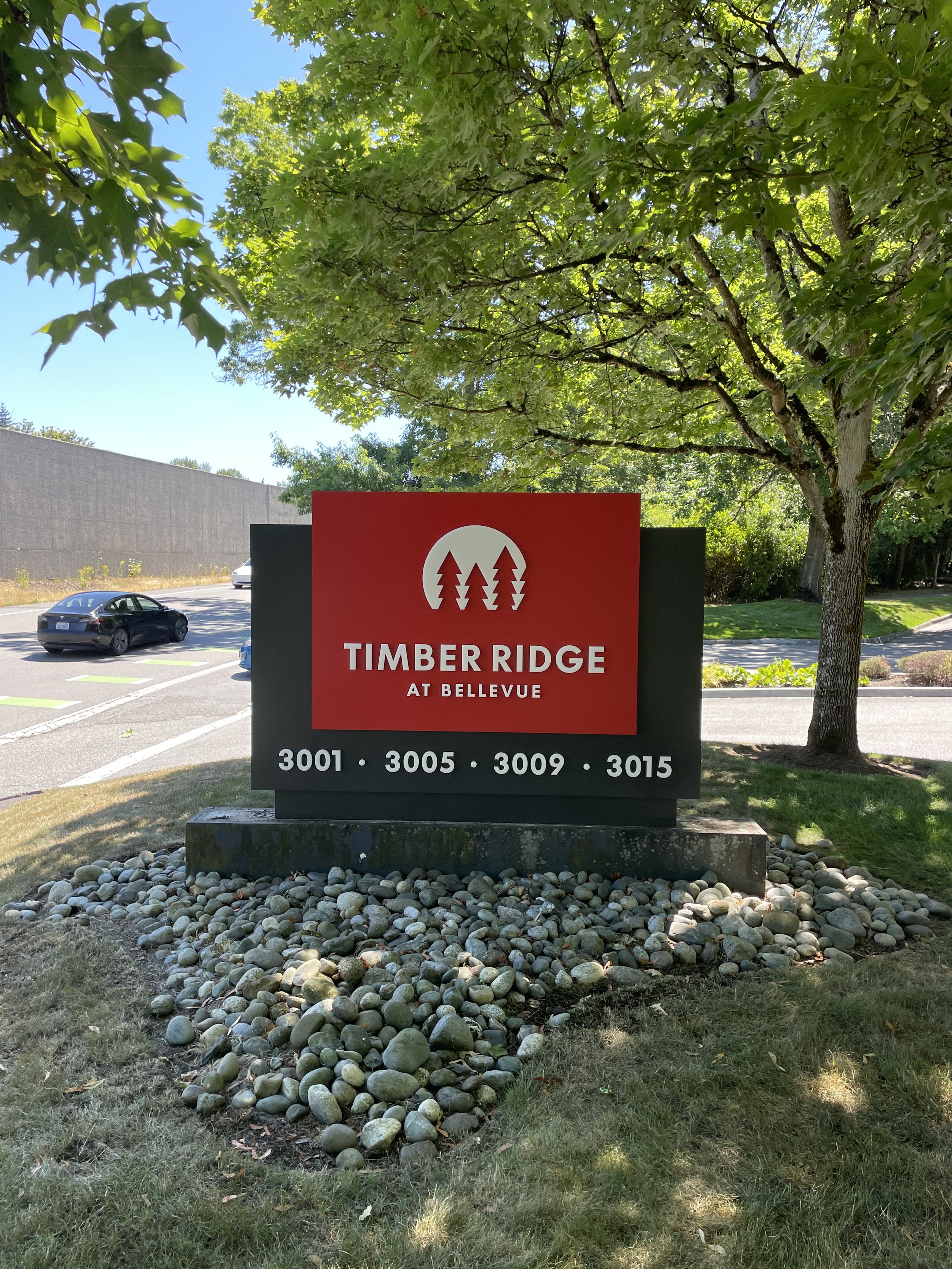

Monument signage installation Timber Ridge Bellevue — Identity monument — aluminum cabinet with ½″ acrylic graphics & address numerals.

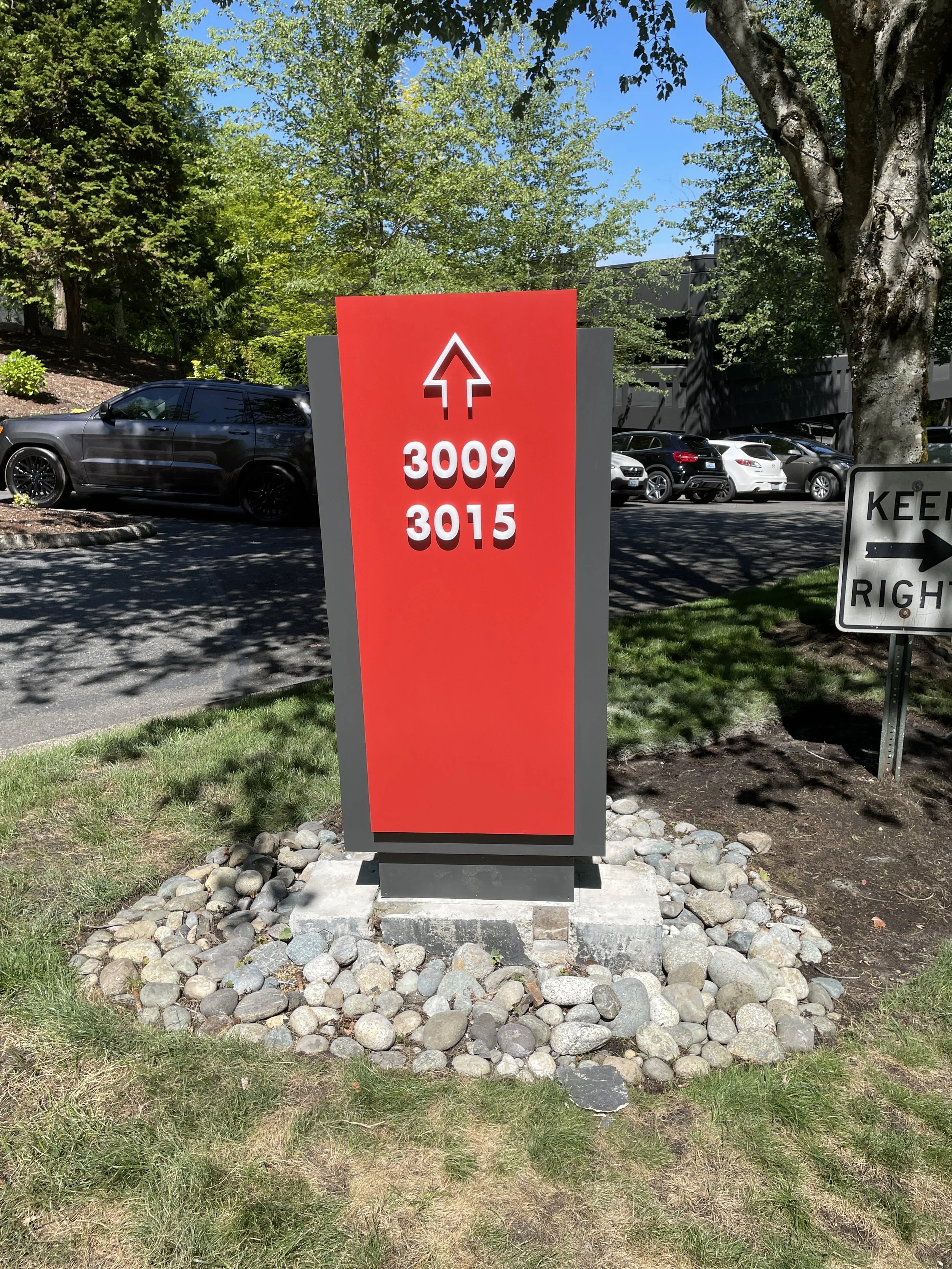

Directional signage Timber Ridge Bellevue 3009-3015 — Building directional — non-illuminated post-mounted aluminum panels.

Timber Ridge installation field coordination Plumb Signs — Field installation — lift access and precision electrical coordination.

Night illuminated signage Timber Ridge Bellevue — Illuminated sign testing — quality check before final turnover.

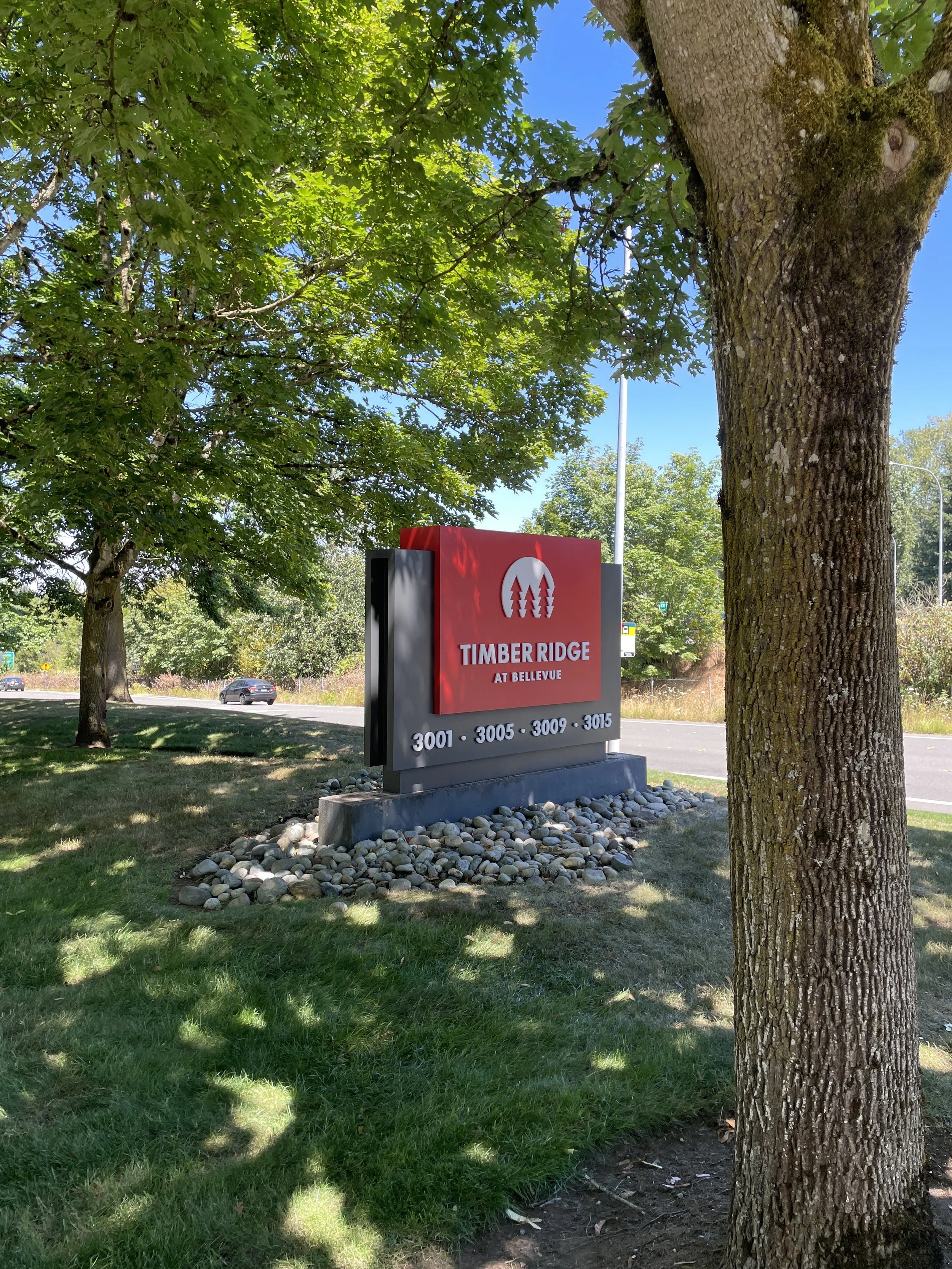

Completed monument signage Timber Ridge Bellevue — Completed monument signage — architectural integration achieved.

Results

The Timber Ridge Bellevue project stands as a showcase of how design coordination, fabrication precision, and field execution come together to elevate a property’s architectural identity. Each sign was crafted for visibility, compliance, and long-term performance — reflecting both the craftsmanship and reliability that define Plumb Signs’ approach to large-scale mixed-use developments.
